Richelieu Riveo Square Heavy-Duty Wall Mount Hinge with Short Backplate – Pair – Chrome +–

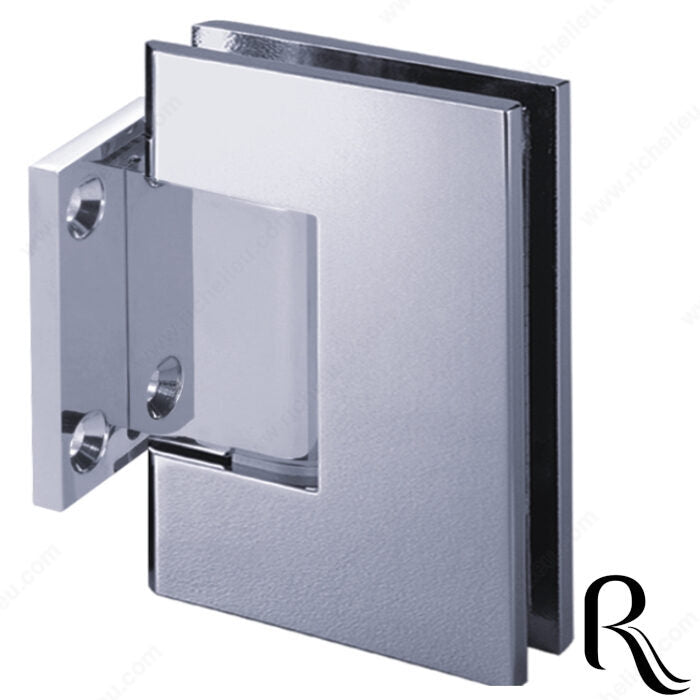

Richelieu Riveo Square Heavy-Duty Wall Mount Hinge with Short Backplate – Pair – Chrome
Product Overview
This heavy-duty Riveo square hinge connects a tempered glass shower door to an adjacent wall. The short backplate facilitates installation on pony walls and allows the glass panel to sit closer to the wall. The hinge self-closes from 15° and is sold as a pair.
Product Features
- Short backplate for wall mounting
- Self-closing from 15°
- Solid brass construction with stainless steel pin and spring
- Sold as one pair containing two hinges
Product Specifications
| Product Number | SH3HSQ90SW140 |
|---|---|
| Finish | Chrome |
| Series | Riveo |
| Mounting Method | Wall Mount (Glass-to-Wall) |
| Backplate | Short |
| Angle | 90° |
| Glass Thickness | 10–12 mm |
| Glass Type | Tempered |
| Duty | Heavy-Duty |
| Maximum Door Weight — 2 Hinges | 50 kg |
| Maximum Door Weight — 3 Hinges | 64 kg |
| Sales Unit | Pair (2 hinges) |
Installation Notes
Glass requires mouse-ear preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass.
Technical Documents
Richelieu Riveo Square Heavy-Duty Wall Mount Hinge with Short Backplate – Pair – Matte Black +–

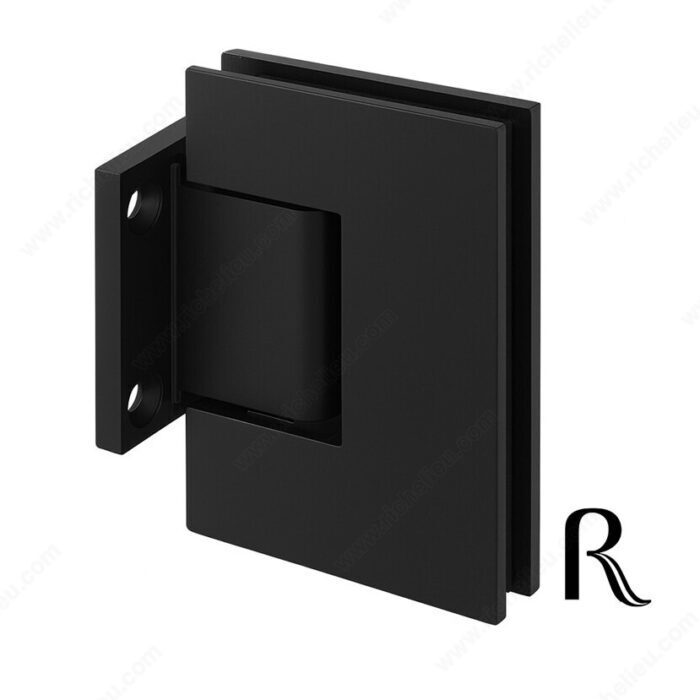

Richelieu Riveo Square Heavy-Duty Wall Mount Hinge with Short Backplate – Pair – Matte Black
Product Overview
This heavy-duty Riveo square hinge connects a tempered glass shower door to an adjacent wall. The short backplate facilitates installation on pony walls and allows the glass panel to sit closer to the wall. The hinge self-closes from 15° and is sold as a pair.
Product Features
- Short backplate for wall mounting
- Self-closing from 15°
- Solid brass construction with stainless steel pin and spring
- Sold as one pair containing two hinges
Product Specifications
| Product Number | SH3HSQ90SW900 |
|---|---|
| Finish | Matte Black |
| Series | Riveo |
| Mounting Method | Wall Mount (Glass-to-Wall) |
| Backplate | Short |
| Angle | 90° |
| Glass Thickness | 10–12 mm |
| Glass Type | Tempered |
| Duty | Heavy-Duty |
| Maximum Door Weight — 2 Hinges | 50 kg |
| Maximum Door Weight — 3 Hinges | 64 kg |
| Sales Unit | Pair (2 hinges) |
Installation Notes
Glass requires mouse-ear preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass.
Technical Documents
