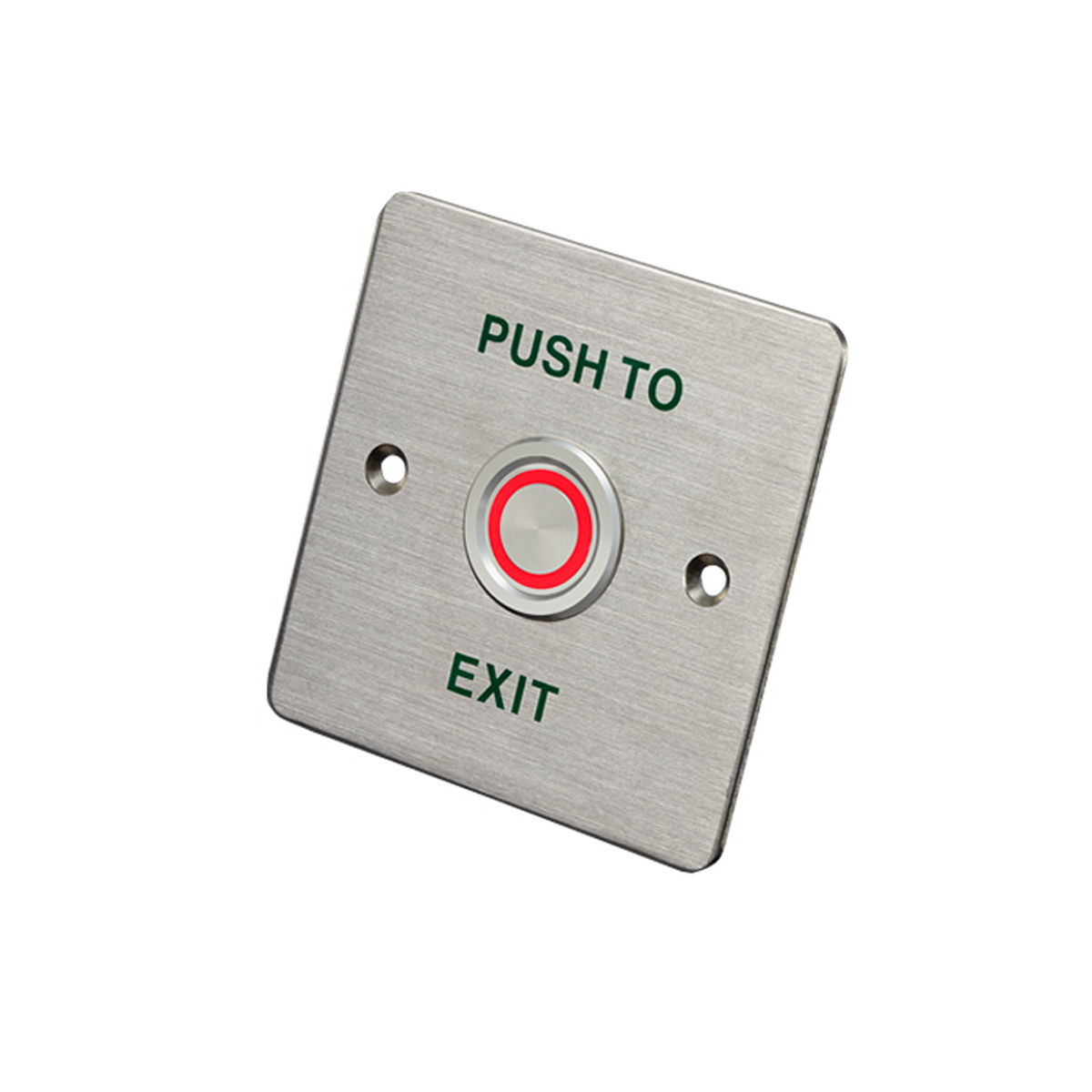

[MLPUSHBTN] Piezoelectric Exit Button with LED (Stainless Steel) 86mm X 86mm

Product Overview

GGH Piezoelectric Exit Button with LED - Stainless Steel

The Piezoelectric Exit Button with LED is designed to provide reliable push-to-exit control for commercial access control systems. Made with a 304 stainless steel faceplate and metal button, it offers a durable, clean appearance for indoor and outdoor door release applications.

The integrated LED indicator provides clear visual status during standby and operation, while the piezoelectric design helps reduce mechanical wear compared to conventional push buttons.

Product Features

• Application: Designed for access control systems, commercial doors, electric lock release, and push-to-exit applications.
• Button Type: Piezoelectric exit button with LED status indicator.
• Material: 304 stainless steel panel with wire-drawing finish and metal button.

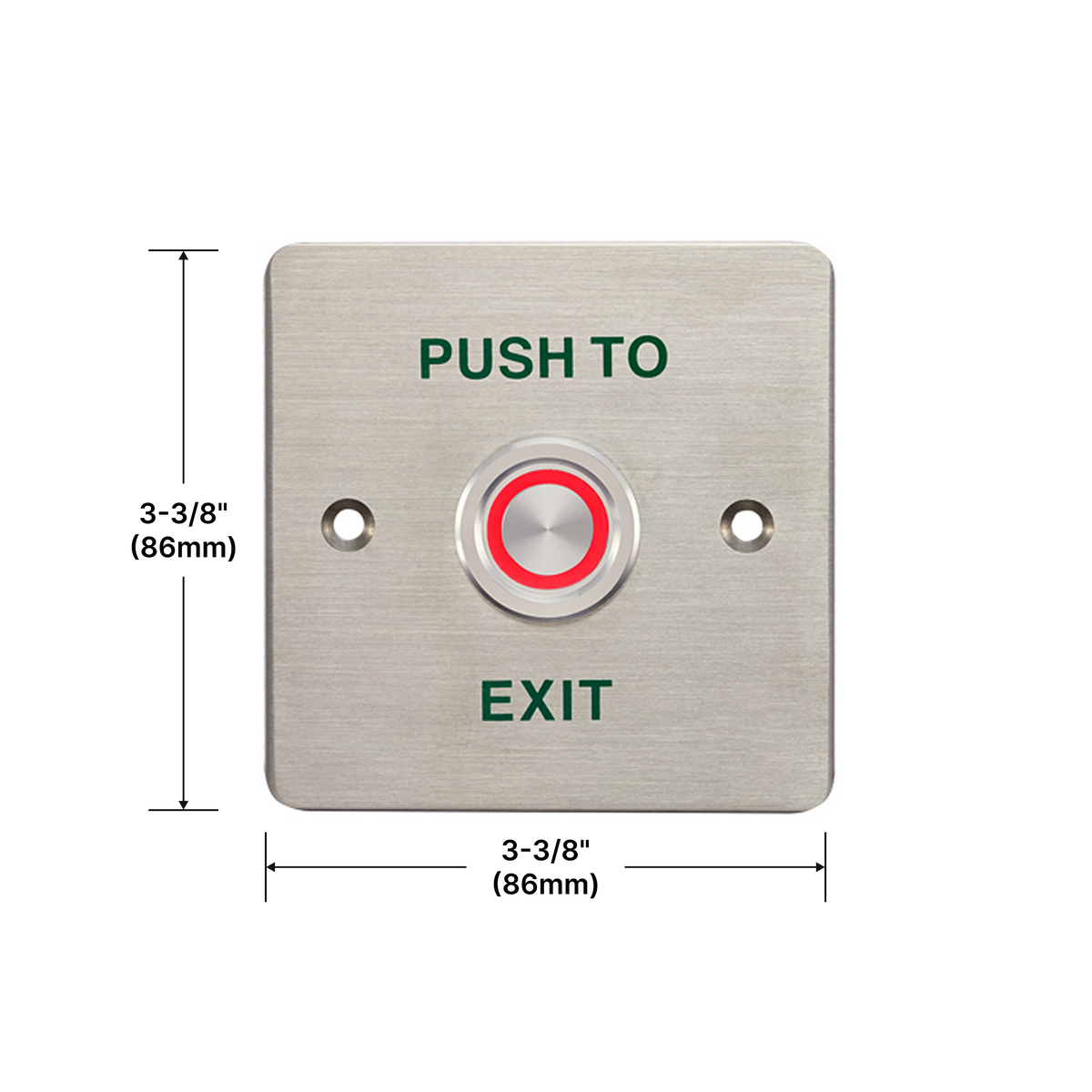

• Faceplate Size: 3-3/8" (86mm) x 3-3/8" (86mm).
• Voltage: 12V DC.
• Standby Current: 20 mA.
• Output Contact: NO/COM.
• Current Rating: 1A @ 30V DC; 0.5A @ 125V DC.
• LED Status: Red indicates standby; green indicates operation.
• Waterproof Rating: IP68.
• Mounting Type: Wall mount or surface mount.
• Installation Surface: Wall near door opening.
• Compatibility: Suitable for compatible access control locks and door release systems.
• Operating Temperature: -4°F to 122°F (-20°C to +50°C).
• Operating Humidity: 0%–99%.
• Testing: Tested for 100,000 operating cycles.
• Use: Suitable for indoor and outdoor applications.
• Wire Identification: Red: Positive, Black: Negative
• Certification: CE-EMC, CE-LVD, FCC-VOC, REACH, WEEE

Technical Documents

• VIEW PDF DRAWING (PDF)
